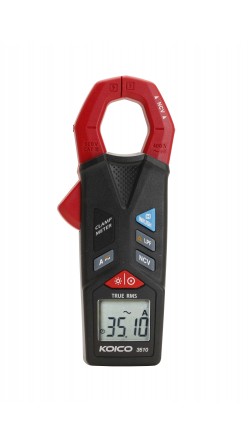

Model : 3510

Pocket Size AC/DC Clamp Meter
  • Compact clamp meter capable of measuring AC/DC Current upto 400A
  • TRMS for accurate readings of non-sinusoidal waveforms
  • Minimum resolution of 0.01A AC/DC
  • Inrush current measurement to measure peak value
  • Low Pass Filter Function
  • Built in Non-Contact Voltage (NCV) Detector
  • Compact Jaw size of 23mm
  • Backlight, Data Hold and DC Zero Function
  • Meets international safety standard EN61010 CAT III 600V
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img

Electrical Specifications

AC A (TRMS)40.00/400.0A
+2.0rdg + 5dgt (50/60Hz)
+3.0rdg + 8dgt (60-400Hz)
DC A40.00/400.0A
+2.0rdg + 5dgt
Low Pass Filter*40.00/400.0A
+3.5rdg + 8dgt (50/60Hz)
Non-Contact Voltage80V ~ 600V AC (4 tone beeper alarm & 4 segment LCD display)
Jaw Opening23mm
Applicable StandardsCAT III 600V
EN 61010-1; EN 61010-2-030; EN 61010-2-032; EN 61010-2-033
EN 61326-1; EN 61000-4
Power Source1.5V AAA x 2
Dimensions & Weight(L)149 x (W)59.5 x (H)27.5, 145g
AccessoriesModel No.AR80 (Carrying case), Batteries(1.5V AAA x 2), Instruction Manual
* : Cut off Frequency (-3dB):160Hz
