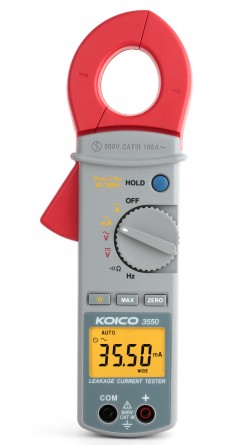

Model : 3550

Earth Leakage Clamp Meter
  • High Resolution of 0.01mA allows measurement of earth leakage current.
  • Provides 4 ranges of measurement: 60mA, 600mA, 10A and 100A. (0.01mA to100A)
  • Data Hold and Max hold available.
  • Auto ranging on AC mA and AC A ranges.
  • Measures AC/DC V upto 600V
  • Also measures Resistance, Continuity and Frequency
  • Auto power off function to save battery
  • Meets international safety standards EN61010 CAT III 600V
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img

Specifications

AC A0-60mA/ 600mA/ 10A/ 100A
AccuracyAccuracy (50/60Hz)
60mA/600mA/10A/80A – +1.2%rdg + 5dgts
80~100A – +5%rdg + 5dgt
Accuracy (60Hz-1kHz)
60mA/600mA/10A/80A – +2.5%rdg + 5dgt
AC V600V (+1.5%rdg + 5dgt)
DC V600V (+1%rdg + 2dgt)
Resistance1KΩ (+1%rdg + 3dgt)
ContinuityBeeper Sound below <35Ω
Frequency*Frequency range –
(A) 0-100 Hz/1kHz (+0.5% ± 2dgts)
(V) 0-100 Hz/1kHz (+0.5% ± 2dgts)
Jaw Size28mm
Applicable StandardsCAT III 600V; EN 61010-1; EN 61010-2-032, EN-61000-6-4; EN 61000-6-2
Dimensions & Weight(L) 218 X (W) 64 X (H) 30mm, 270gm
AccessoriesMode No.AR-100 (Carrying bag),
Model No.AR-20 (Test Leads),
Battery (1.5V AAA X 2),
Instruction Manual

*Sensitivity : 10mArms Minimum

5Vrms Minimum
