Model : 3515

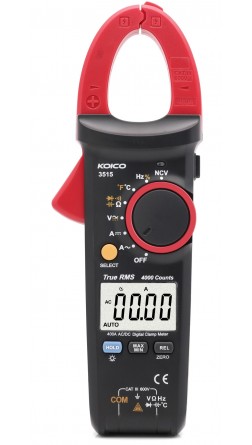

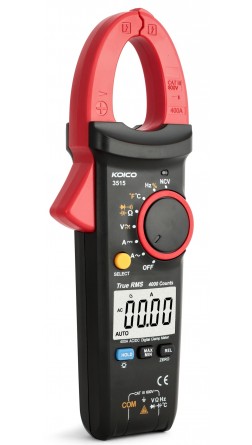

400A AC/DC Clamp Meter
  • 400A AC/DC clamp meter
  • TRMS for accurate measurement on Non sinusoidal waveforms.
  • LED work light to illuminate the measurement spot as well as backlit LCD display
  • Built in Non-contact Voltage detector
  • Measures Voltage, Resistance, Capacitance, Frequency and Temperature.
  • Max/Min, REL & Data Hold Function
  • Meets International safety standard EN61010 CAT III 600V
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
Enquire Now
learn more

Specifications

datasheet
learn more
AC A40/400A
(+2.5rdg+5dgt)
DC A40/400A
(+2.0rdg+3dgt)
AC V4/40/400/600V
+1.2%rdg+5dgt (4/40/400)
+1.5%rdg+5dgt (600V)
DC V400mV/4/40/400/600V
+1.0%rdg+8dgt (400mV)
+0.8%rdg+1dgt (4V),
+0.8%rdg+3dgt (40/400V)
+1.0%rdg+3dgt (600V)
Ω400Ω/4K/40/400kΩ/4M/40MΩ
+1.2rdg+2dgt (400Ω)
+1.0rdg+2dgt (4/40/400kΩ)
+1.2rdg+3dgt (4MΩ)
+2.0rdg+5dgt (40MΩ)
Capacitance40/400nF/4/40/400µF/4mF/40mF
+4.0%rdg+25dgt (40nF)
+4.0%rdg+5dgt (400µF/4µF/40µF/400µF)
+10%rdg (4mF)
Frequency10Hz-1MHz
(+0.1rdg+4dgt)
Temperature*-40°C – 1000°C
-40°F – 1832°F
DiodeAround 3.3V
Continuity BuzzerSound below 30Ω
Jaw Size30mm
Applicable StandardsIEC61010-1, EN61010-1, EN61010-2-032, EN61010-2-033, CAT III 600V
Power source1.5V AAA x 3
Dimensions228mm(L) x 77mm(W) x 41mm(H)
AccessoriesModel No.AR65 (Carrying case), Model No.AR25 (Test Lead),
Model No.AR105 (Temperature probe), Battery (1.5V AAA x 3)
Instruction Manual
*With the use of K-type Temperature Probe
