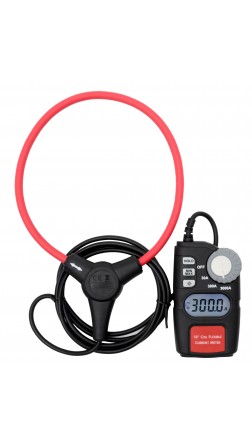

Model : 3570

Flexible Clamp Meter
  • AC Current measureable max upto 3000A
  • Flexible clamp sensor for measurement in hard to clamp areas.
  • TRMS for accurate measurements on Non sinusoidal waveforms
  • Min/Max & Data Hold
  • Backlight Display
  • Instrument meets IEC61010 CAT IV 600V/ CAT III 1000V
  • img
  • img
  • img
  • img
  • img


Measurement range (AC A TRMS)30/300/3000A
Conductor SizeApprox ø 150mm (max)
Influence of Conductor positionAdditional ±3%(max) depending on the distance from the center position
Overload Protection5000A AC for 10 seconds
Applicable standardsCAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2, EN 61010-1; EN61010-2-032; EN 61326-1; EN61000-4
Operating temperature / humidity0o C- +50oC,less than 80% RH (without condensation)
Storage temperature / humidity-10 to +60oC,less than 70% RH (without condensation)
Power sourceLR03(AAA)(1.5V)×2 or UM-4
Dimensions & WeightDisplay unit : 120(L)×70(W)×26(H)
Cable Diameter : 8.5mm approx
Cable length : 1.8m approx.
AccessoriesModel No. AR-35 (Carrying case)
Battery (1.5V AAA x 2)
Instruction Manual
