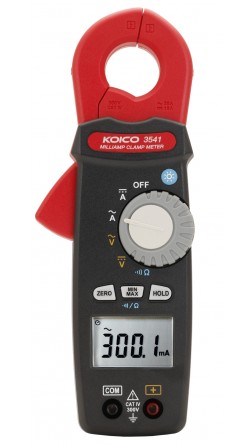

Model : 3541

AC/DC Clamp Meter for low current
  • High resolution of 0.1mA on AC/DC A ranges for precise low current measurements.
  • Well suited for troubleshooting in electrical installations, devices, automotive engineering, control systems
  • TRMS for accurate measurement on Non- Sinusoidal waveforms.
  • Measurement of AC/DC Voltage, Resistance and Continuity tests
  • Bright Backlight for easy viewing even in dark areas.
  • Max/Min, Data hold and Auto zero function available.
  • Meets safety standards EN61010 CAT IV 300V
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img

Specifications

AC A300mA/3/20A
+1%rdg + 5dgt (50/60Hz)
DC A300mA/3/10A
+1%rdg + 10dgt (300mA/3A)
+3%rdg + 10dgt (10A)
AC V50/300V
+1.2%rdg + 5dgt (40Hz – 1kHz)
DC V50/300V
+1%rdg + 2dgt
Ω500Ω/5/50/500kΩ
+1%rdg + 2dgt
Continuity BuzzerBuzzer sounds below 100Ω
Jaw Size23mm
Applicable StandardsCAT IV 300V
EN 61010-1; EN 61010-2-032; EN 61010-2-033
EN 61326-1; EN 61000-4
Power source1.5V AAA x 2
Dimensions and Weight(L) 206 x (W) 76 x (H) 34, 262g
AccessoriesModel No. AR-20 (Test Lead)
Model No. AR-55 (Carrying case)
Instruction Manual
Battery (1.5V AAA x 2)
