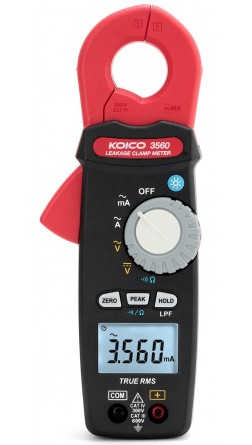

Earth Leakage clamp meter

Model : 3560

High resolution of 0.001mA on 6mA range for precise measurement of very low currents.
Measurement range upto 60A AC.
TRMS for accurate measurement even on Non sinusoidal waveforms.
Peak Hold to measure peak values like inrush current
Low pass filter function available
Compact Jaw size of 23mm
Auto ranging, Auto Power off & Data Hold
Measures AC/DC Voltage and resistance
Meets international safety standard EN61010 CAT IV 300V

AC A	6/60/600mA/6/60A Accuracy 50/60Hz : +1%rdg + 8dgt (6mA) +1%rdg + 5dgt (60/600mA/6/60A)Accuracy 50Hz – 500Hz: +2%rdg + 8dgt (6mA) +2%rdg + 5dgt (60/600mA/6/60A)
AC A (Low Pass Filter)	6/60/600mA/6/60A +2%rdg + 8dgt (6mA) +2%rdg + 5dgt (60/600mA/6/60A)
AC V	60/600V +1%rdg + 3dgt (50Hz – 500Hz) Input Impedance: 10 MΩ//less than 100pF
DC V	60/600V, +1%rdg + 2dgt
Resistance	600Ω/6/60/600kΩ, +1%rdg + 2dgt
Continuity	Buzzer sounds below 45Ω
Jaw Size	23mm
Applicable Standards	CAT IV 300V, EN 61010-1; EN 61010-2-032; EN 61010-2-033, EN 61326-1; EN 61000-4
Power source	1.5V AAA x 2
Dimensions & Weight	206 (L) x 76 (W) x 33.5mm (H), 262g
Accessories	Model No. AR-20 (Test Lead) Model No. AR-55 (Carrying case) Instruction Manual Battery (1.5V AAA x 2)
