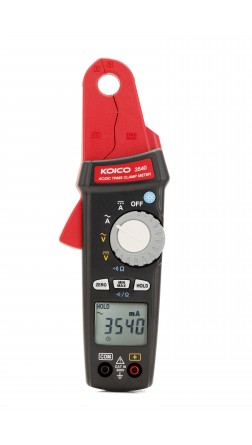

Model : 3540

AC/DC Clamp Meter for Low current
  • High resolution of 1mA on AC/DC A ranges.
  • Wide measurement range upto 100A
  • Thin jaw profile for easy access and measurement.
  • LED work light to illuminate the measurement spot as well as backlit LCD display
  • TRMS for accurate readings of non-sinusoidal waveforms
  • Max/Min and Data Hold Function
  • Auto zero adjust function
  • Meets International safety standard EN61010 CAT III 300V
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img


AC A5000mA/50/100A
(5000mA/50A) +1.8%rdg + 5dgt (40Hz – 1kHz)
(100A) +5%rdg + 5dgt (40Hz – 1kHz)
DC A5000mA/50/100A
(5000mA/50A) +1.8%rdg + 5dgt
(100A) +5%rdg + 5dgt
AC V50/300V +1.2%rdg + 5dgt (40Hz – 1kHz)
DC V50/300V +1%rdg + 2dgt
Ω500Ω/5/50/500kΩ +1%rdg + 2dgt
Continuity BuzzerBeeper sounds below 120Ω
Jaw Size13mm
Applicable StandardsCAT III 300V, EN 61010-1; EN 61010-2-032
EN 61326-1; EN 61000-4
Power source1.5V AAA x 2
Dimensions and Weight(L) 220 x (W) 72 x (H) 35mm, 210g
AccessoriesModel No.AR-55 (Carrying case),
Model No.AR-20 (Test Lead),
Battery (1.5V AAA x 2)
Instruction Manual
