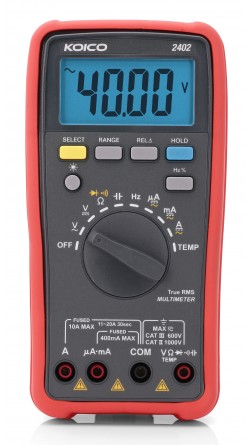

Model : 2402

Rugged 1000V Digital Multimeter
  • TRMS for accurate measurement on non-sinusoidal waveforms.
  • Wide availability of measurement parameters for a variety of purposes
  • Extra-long battery life
  • Data Hold, REL Mode and Auto Power off available
  • Large LCD with backlight
  • Temperature measurement
  • Meets International Safety Standards IEC61010-1 CAT III 600V, CAT II 1000V
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img
  • img

Electrical Specifications

DC V

400.0mV/4.000/40.00/400.0/1000V

Input Impedance approx 10MΩ (40/400/100V), 11MΩ (4V) ≥100MΩ (400mV)

Accuracy : ±0.5%rdg ±3dgt

AC V

400.0mV/4.000V/40.00V/400.0V/1000V

Input Impedance approx 10MΩ (4/40/400/1000V), 11MΩ (400mV)

Accuracy : ±1%rdg ±5dgt (4/40/400/1000V),

±1%rdg ±10dgt (400mV) Sine Wave (40Hz – 500Hz)

DC A

400.0/4000μA/40.00/400.0mA/4.000/10.00A

Accuracy +1% + 3dgt

AC A

400.0/4000μA/40.00/400.0mA/4.000/10.00A

Accuracy +1% + 5dgt (40-500Hz)

Resistance

400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ

Accuracy : +0.5%rdg + 3dgt (400Ω),

+0.5%rdg + 2dgt (4/40/400kΩ/Ω)

+1.5% rdg+ 3dgt (40MΩ)

Continuity 400.0Ω (The buzzer sounds for resistances lower than 90 + 40Ω)
Frequency

5.000/50.00/500.0Hz/5.000/50.00/500.0kHz/5.000MHz

Accuracy : +0.1% + 3dgt

Diode Test 1.000V Open circuit voltage around 1.5V
Capacitance

50.00/500.0nF/5.000/50.00/100.0µF

Accuracy : +1.5% + 15dgt (50nF),

+2.0% + 5dgt (500nF)

+5.0% + 5dgt (5µF/50µF/100µF)

Temperature -55oC – 700oC
Applicable Standards IEC61010-1 CAT III 600V, CAT II 1000V
Power Source 1.5V AA x 2
Dimension and Weight (L)181 x (W)91 x (H)57mm, Approx 380g (excluding battery)
Accessories Model No. AR-10 (Test Leads), Battery 1.5V (AA) x 2, Holster, Model No. AR-15 (Temperature probe), Instruction Manual
