Model : 7402

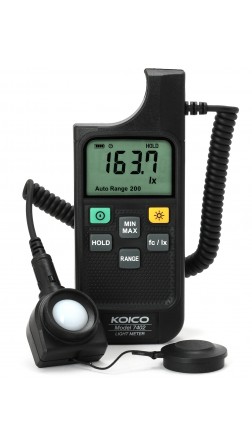

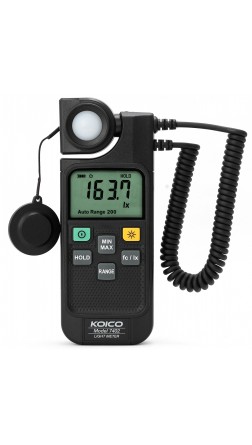

Light Meter with detachable/rotatable light sensor
  • Measures upto 199900lux or 19990 Foot Candles
  • Detachable & Rotatable Light Sensor offering maximum flexibility in use.
  • Large LCD Display with backlight
  • Data Hold & Min/Max functions available.
  • img
  • img
  • img

Specifications

Light Range

0.0 ~ 19990 fc ; 0.00 ~ 199900 lx

(0.0 to 199.9/1999/19990/199990lx)

(0.0 to 19.9/199.9/1999/19990fc)

Automatic or manual selection of range)

Resolution

0.01 lx – 100lx

0.1 fc – 10fc

Accuracy ±3%rdg, ±5dgts (Calibrated to standard incandescent lamp 2856oK)
Sample Rate 2 times/sec
Angle Deviation from cosine characteristics

10+1%

30+2%

60+5%

80+20%

Applicable Standards EN 61326-1; EN 61000-4
Power Source 1.5V AA x 2
Dimension and Weight 169(L) x 63(W) x 37(H), 185g
Accessories Model No. AR140 (carrying case), User’s Manual, Battery (1.5V AA x 2)
