Model : 8510

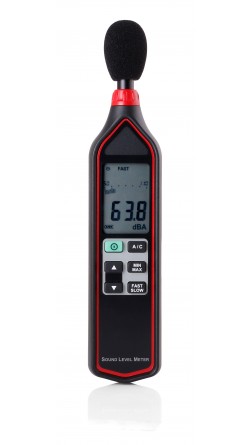

Digital Sound Level Meter with analogue bar graph
  • Designed to meet the measurement requirements of Safety engineers, Industrial safety offices and sound quality control in various environments.
  • Measuring range from 32-130db
  • Frequency Weighting A/C.
  • 60dB Dynamic Space In Each Range.
  • Time Weighting Fast/Slow
  • 30 segment bar graph display
  • Max/Min Function
  • Alarm function with OVER and UNDER indication
  • Both AC and DC signal outputs are available from standard 3.5mm coaxial socket.
  • Tripod Mountable.
  • Complies with IEC 61672-1 Class 2 Standard



Measurement Range 32~130dB
Level range

Lo: 30-90 dB,

Med : 50-110 dB,

Hi : 70-130 dB

Accuracy ±1.4 dB ( ref. 94 dB@1KHz )
Analog Display 30 segment bargraph
Frequency Weighting A/C
Time weighting FAST/SLOW
Frequency range 20 Hz~8KHz
Microphone 1/2 inch electret condenser microphone
Auxiliary Outputs AC/DC Output
Power source 9V Battery
Applicable standards IEC61672-1, Class 2
Dimensions 258 (L) x 55 (W) x 25 (H), 185g

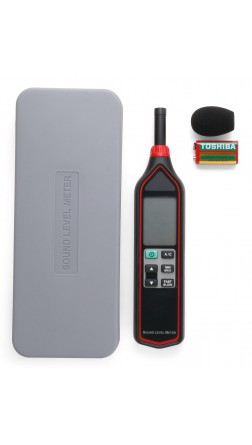

Accessories Model No.AR160 (Carrying case), Battery (9V), Windscreen, Instruction Manual
