| Test Voltage DC V ( Insulation Resistance) | 250V / 500V / 1000V |
| Measuring Ranges ( Insulation Resistance) | 0-2MΩ / 0-20MΩ / 0-200MΩ / 0-2000MΩ |
| Resolution ( Insulation Resistance) | 0.001MΩ/0.01MΩ/0.1MΩ/1MΩ |
| Output voltage Open Circuit ( Insulation Resistance) | +10% |
| Accuracy ( Insulation Resistance) | 0-2MΩ : ±(5%rdg+5dgt) 0-20MΩ : ±(1.5%rdg+5dgt) 0-200MΩ : ±(2.5%rdg+3dgt) 0-2000MΩ : ±(5%rdg+5dgt) |
| Output current ( Insulation Resistance) | 1mA DC |
| Measuring Range ( Continuity Test) | 0-200Ω |
| Resolution ( Continuity Test) | 0.01Ω |
| Measuring Current ( Continuity Test) | 200mA DC min |
| Output voltage on open circuit ( Continuity Test) | 4V DC min |
| Accuracy ( Continuity Test) | ±(1.5%rdg+3dgt) |
| Range ( AC Voltage) | 0-600V |
| Resolution ( AC Voltage) | 1V |
| Accuracy ( AC Voltage) | ±(1.5%rdg+3dgt) |
| Line Frequency Range ( AC Voltage) | 40Hz-120Hz |
| Applicable standards ( General Specifications) | CAT III 600V, IEC/EN61010-1, IEC/EN 61557-1, IEC/EN 61557-2 |
| Power Supply ( General Specifications) | AA 1.5V x 8 battery |
| Dimensions & Weight ( General Specifications) | 175 (L) x 85 (W) x 75mm (H), approx. 645g (including batteries) |

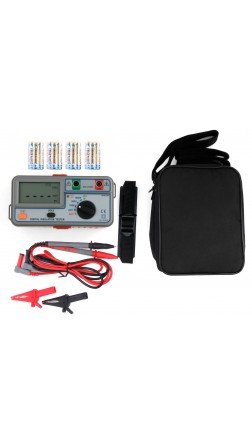

| Accessories | Model No.AR-45 (Carrying case), Model No.AR-30 (Test Lead), Model No. AR-51 (Shoulder belt) Battery (1.5V AA x 8) Instruction Manual |
