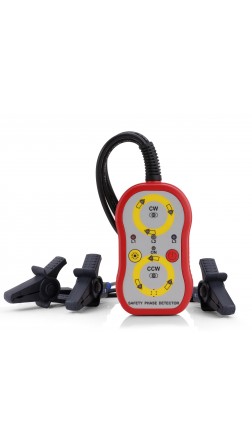

Model : 8110

Non-contact Phase sequence indicator
  • Safely test phase rotation without direct contact with live wires
  • Confirm Phase rotation and open phase
  • Indication with Flashing LED’s and buzzer.
  • Brightness switch to make the indication visible in dim areas or sunlight.
  • Wide range for 3 phase from 75-1000V AC.
  • Magnet on the back allows for easy & hands free use.
  • Instrument meets IEC61010-1 CAT IV 600V.
  • img



Presence of Open Phase

Phase Rotation

Input Voltage range 75-1000V AC
Frequency range 45-65Hz
Phase Rotation When the Green Rotation LED flashes in clockwise direction orderly as indicated with “arrow”mark, the circuit will be forward under test. The buzzer sounds


When the Red Rotation LED flashes in anti-clockwise direction orderly as indicated with ”arrow” mark, the circuit will be reverse under test. The buzzer sounds continuously

Operating/storage condition

-10°C ~ 50°C Max. 80% R.H. (Operating Temperature)

-0°C ~ 40°C Max. 80% R.H (Storage Temperature)

Visual Indication Via LEDs with Super brightness function
Power Supply 1.5V (AA) × 4 Alkaline batteries
Applicable standards

EN 61010-1 CAT III 1000V / CAT IV 600V

EN 61326-1, EN 61557-1 EN 61557-7

Dimensions/Weight 118 (L) × 69 (W) × 38 (D)mm, 370g

Model No. AR-85 (Carrying case)

Instruction manual

Batteries R6P x 4
