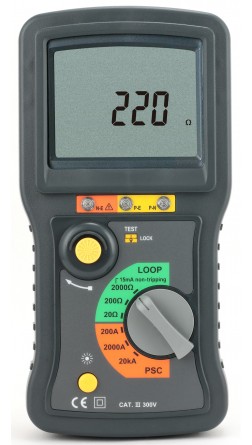

Loop Impedance Range | 20 Ω (0.00 ~ 19.99Ω) 200 Ω (0.00 ~ 199.9Ω) 2000 Ω (0.00 ~ 1999Ω) | |
Nominal Test current at 0Ω external loop | 23A/40ms 2.3A/40ms 15mA/400ms | |
Loop Impedance Accuracy | 2%rdg + 4dgt | |
Prospective short circuit current Range | 20 KA (0.00 ~ 4.00 KA) 2000 A (0 ~ 1999 A) 200 A (0.00 ~ 199.9Ω) | |
Nominal Test current at 0Ω external loop | 23mA/40ms 23mA/40ms 2.3mA/400ms | |
Accuracy | Consider accuracy of Loop Impedance | |
Voltage display Range | 150~260 V | |
Accuracy | (2%rdg + 4dgt) | |
System voltage | 230V (+13%, -15%) | |
System frequency | 50Hz | |
None Battery system voltage | 150V ~ 260V | |
Opearting Temperature | 0 ~ 40 °C | |
Wiring check | P-E | LEDs illuminate when the wiring polarity of circuit under test is correct |
P-N | P-N | |
N-E | N-E | LED is light when P and N are reversed or the Earth is not connected |
15mA Loop measurement | Loop impedance 2000Ω range measurement is carried out with low test current (15mA). The current will not cause tripping out for ELCBs | |
Over Temperature Protection | When over heating, the ‘thermometer’ symbol will show on LCD & instrument will stop measuring | |
Accessories | Model AR-60 (Test Leads) Model AR-120 (Hard carrying case) Model AR-61 (Hand Strap) Instruction Manual | |
Optional Accessories | AR-210 (Plug type test lead) |
